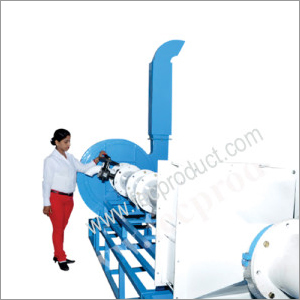

HEPA Filter Testing System

HEPA Filter Testing System
HEPA Filter Testing System
Product Code : HF-38
Brand Name : FEC
Product Description

Since establishment, we have been playing a lead role in manufacturing and supplying HEPA Filter Testing System. This system is equipped with butterfly valve for set the desired flow and pressure. We manufacture this system at our sound production unit, using best quality materials. The system features digital display of pressure drop measurement across filter and comes with duct fitted with inspection window. We offer HEPA Filter Testing System at market leading prices.

Features:



  • Longer working life
  • High operational fluency
  • Easy to use



Further Details:



Our company is counted among the well known manufacturer and supplier  of Hepa Filter Test Rig. The equipment is suitable for test the air filter test as per to standard EN 779 and ASHRE 52.2. It is made under the guidance of our professionals by using advance techniques. It is also equipped with butterfly valve for set the desired flow and pressure. In order to make sure its quality, Hepa Filter Test Rig tested under various parameters.

Latest Air Filter Testing System Without / With Dust Particle System. Test rig upgrade according to EN 779 and Asher 52.2. Schematic Diagram for air filter test system as per BS EN 779 S.S 304 Grade.

Technical Specifications

  • Flow rate  :600 to 6000cfm
  • Differential Pressure     :  Digital
  • Test Aerosol: Salt / DOP
  • Loading dust : Ashrae test dust, ISO 12103 – A2 and ISO 12103 – A4
  • Filter samples : Pocket and cassette filters with max Dimensions 610 x 610mm (other filter also can be test)
  • Flat sheet filter media  : Also can be test as on per order request
  • Air supply : Special designed for dispense the dust



  • The filter sample can be easily installed into the rotatable and movable filter housing
  • The test dust is divided info 6 dust sections and fabricated air proof.
  • Suction part dust side and blower outside.
  • Flow rate V/S differential Pressure
  • Dust holding capacity
  • Efficiency of filter and restriction pressure
  • The pressure measuring facilities in dust section up stream and down stream digital sensor
  • Flow measuring device imported digital sensor with digital will be attached in duct


The Test Rig suitable for test the air filter test according to your mention List

  • Imported Differential pressure measuring on operating panel duct section up stream and down stream digital sensor
  • Butter fly valve for set the desired flow and pressure
  • Flow measuring device imported digital sensor with display will be attached in ductFlow rate V/S Differential pressure
  • Over Pressure Aerosol Detection DOP/PAO Test
  • The filter samples can be easily installed into the movable filter housing.
  • The test duct is divided into 4 duct section and fabricated airproof.
  • Suction part duct side and blower outside
